Marine Shaft Alternator Power System For Marine Main Engine
Details

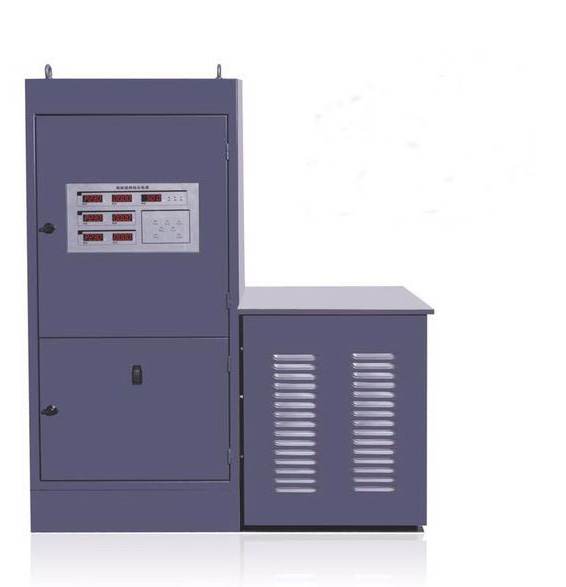

Tontek Power marine shaft alternator power system for marine main engine will stabilized the voltage and frenquency of output at 400V,50Hz. The output of the power is supplied by the isolation transformer, it increase the stability,with load strong adaptability, good quality of output wave form ,easy to operate,with perfect protection functions of short circuit, over-current,over-voltage and overheating ,to ensure a safe and reliable operation.
However,we can also check with 60Hz,440V.
Technical parameter
| Type | Prime Power (KW) | Prime Current (A) | Frequency (Hz) | Voltage (V) | Factor (lag) | RPM (r/min) | Voltage Regulation (%) |
| TPG-30H | 30 | 54 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-40H | 40 | 72 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-50H | 50 | 90 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-64H | 64 | 115 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-75H | 75 | 135 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-90H | 90 | 162 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-100H | 100 | 180 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-120H | 120 | 216 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-150H | 150 | 270 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-200H | 200 | 360 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-250H | 250 | 450 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
| TPG-300H | 300 | 540 | 50 | 400/230 | 0.8 | 1000-2300 | ≤±0.5 |
